Hydraulic cylinder tube

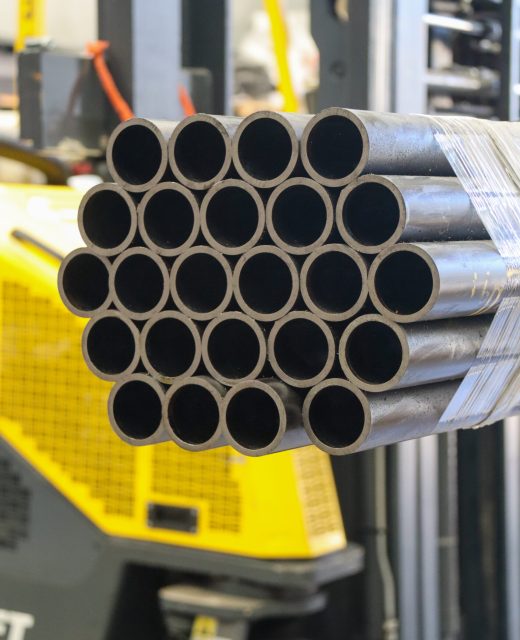

IMG_1975

Improved standards

Hydraulic cylinder tube range

VH Steels carries a vast range of Hydraulic Steel Cylinder Tube sizes in both Electro welded and Seamless condition.

Our tubes are sourced from our quality European supplier with strict control measures for improved quality.

PRODUCT CATALOGUE

Alta's t5 range

hydraulic steel cylinder tube

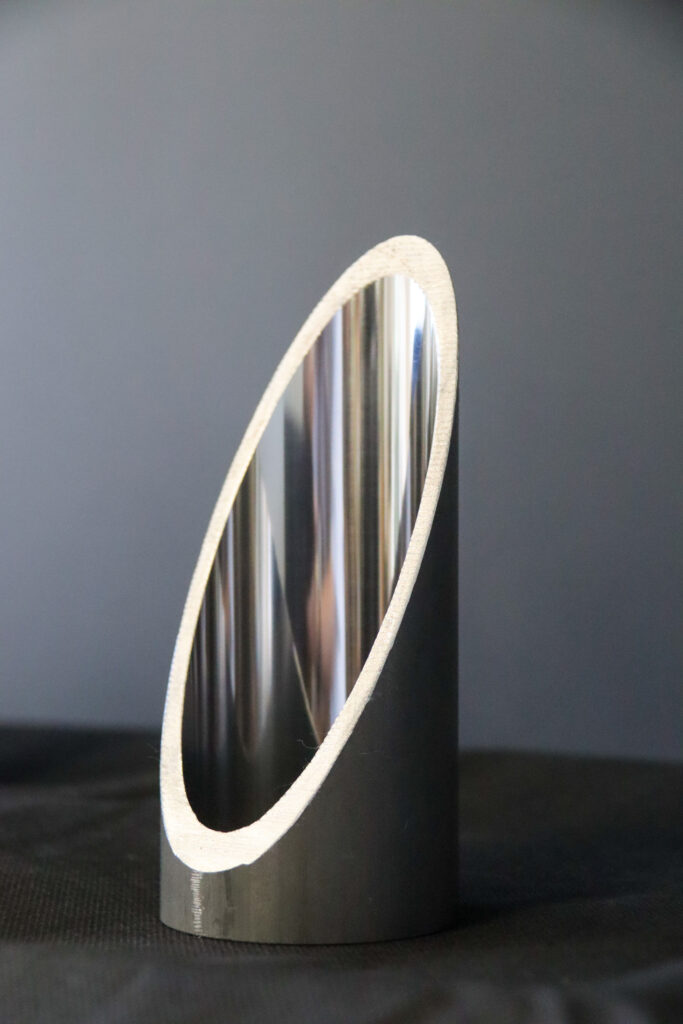

Alta’s T5 Line produces superior quality honed hydraulic cylinder tubes, all finished with the patented Alta finish inside bore.

 The T5 focus’ on DOM Electro Welded Tubes in the size range ID 45mm up to Max ID 110mm with a 7.5mm Wall.

  • Special Tolerance
  • 100% Controlled Operation
  • Inside surface scanned 100% during production
  • No Steady Band needed for T5
  • Improved concentricity greater than NORM EN 10305.2
  • Improved Straightness 0.50mm/1000mm -
    Better than NORM
Enquire now
HONED Cylinder Tube - Metric
ID OD WD Kgs / Mtr
25
35
5
3.7
30
40
5
4.32
35
45
5
4.93
40
50
5
5.55
45
55
5
6.17
50
60
5
6.78
50
65
7.5
10.64
55
70
7.5
11.56
60
75
7.5
12.48
63
75
6
10.21
65
80
7.5
13.41
70
80
5
9.25
70
85
7.5
14.33
75
90
7.5
15.26
75
95
10
20.96
80
92
6
12.73
80
95
7.5
16.18
80
100
10
22.2
80
105
12.5
28.51
85
100
7.5
17.11
85
105
10
23.43
90
105
7.5
18.03
90
110
10
24.66
95
115
10
25.89
95
120
12.5
33.14
100
120
10
27.13
100
125
12.5
34.68
105
125
10
28.36
110
125
7.5
21.73
110
125
7.5
21.73
110
130
10
29.59
110
140
15
46.24
110
140
15
46.24
115
130
7.5
22.66
115
135
10
30.83
115
140
12.5
39.3
120
140
10
32.06
120
145
12.5
40.85
125
150
12.5
42.39
130
155
12.5
43.93
130
160
15
53.64
135
160
12.5
45.47
140
160
10
36.99
140
170
15
57.34
150
180
15
61.04
155
170
7.5
30.06
160
190
15
64.74
160
195
17.5
76.6
165
200
17.5
78.76
170
200
15
68.44
170
210
20
93.71
180
210
15
72.13
180
220
20
98.65
200
230
15
79.53
200
245
22.5
123.46
200
250
25
138.72
210
245
17.5
98.18
220
260
20
118.38
230
270
20
123.31
250
300
25
169.55
ID OD WD Kgs / Mtr
1 1/2″
1 3/4″
1/8″
3.23
1 1/2”
1 7/8”
3/16”
5.04
1 1/2”
1 1/2”
2”
1/4”
2”
2 3/8”
3/16”
6.51
2”
2 1/2”
1/4”
8.95
2 1/4”
2 3/4”
1/4”
9.94
2 1/2”
2 7/8”
3/16”
8.02
2 1/2”
3”
1/4”
10.94
2 3/4”
3 1/4”
1/4”
11.93
3”
3 1/2”
1/4”
12.93
3’
3 3/4”
3/8”
20.14
3 1/4”
3 3/4”
1/4”
13.92
3 1/4”
4”
3/8”
21.63
3 1/2”
4”
1/4”
14.92
3 1/2”
4 1/4”
3/8”
23.12”
4”
4 1/2”
1/4”
16.91
4”
4 3/4”
3/8”
26.1
4”
5”
1/2”
35.8
4 1/4”
4 3/4”
1/4”
17.9
4 1/4”
5”
3/8”
27.59”
4 1/2”
5”
1/4”
18.89
4 1/2”
5 1/4”
3/8”
29.09
4 1/2”
5 1/2”
1/2”
39.78
4 3/4”
5 1/4”
1/4”
19.89
5”
5 1/2”
1/4”
20.88
5”
5 3/4”
3/8”
31.98
5”
6”
1/2”
43.75
5 1/2”
6 1/8”
5/16”
28.89
5 1/2”
6 1/4”
3/8”
35.05
5 1/2”
6 1/2”
1/2”
47.73
6”
6 1/2”
1/4”
24.86
6”
6 3/4”
3/8”
38.04
6”
7”
1/2”
51.71
6 1/2”
7 1/2”
1/2”
55.69
7”
8”
1/2”
59.66
7 1/2”
8 1/2”
1/2”
63.64
8”
9”
1/2”
67.62
9”
10”
1/2”
75.58
10”
12”
25.5
175.77
